Data Return Seed Pixels DC12V/5V 1000 LEDs 1inch/2inch/4inch Pitch 4Pin wire WS2811 RGB IC Addressable IP65

Seed pixels, WS2811 ic ,4wire data return line, 2inch wire spacing centre to centre, Black / Clear wire,11.52W/m, Pixel LED node addressable, just bare wires for input and output,no any pigtails or connectors,1000leds/string.

DC12V:

  • 2inch, Price: 70usd/roll;
  • 4inch,Price: 80usd/roll;



DC5V:

  • 2inch, Price: 60usd/roll;
  • 4inch,Price: 70usd/roll;
分类： ,

Specifications:

This light is with data return 4pin wire line,which can be used to make the LED Curtain String Lights or icicle pixel lights.

  • Working Input Voltage: DC12V/5v.
  • Protocol: We use MW1856MA ic (Same protocol as WS2811),choose WS2811 ic on setting page.
  • Color Order: RGB
  • SMD: SMD3248
  • Output Power: 0.1W/pc led.
  • Out R/G/B output current: 8.5mA

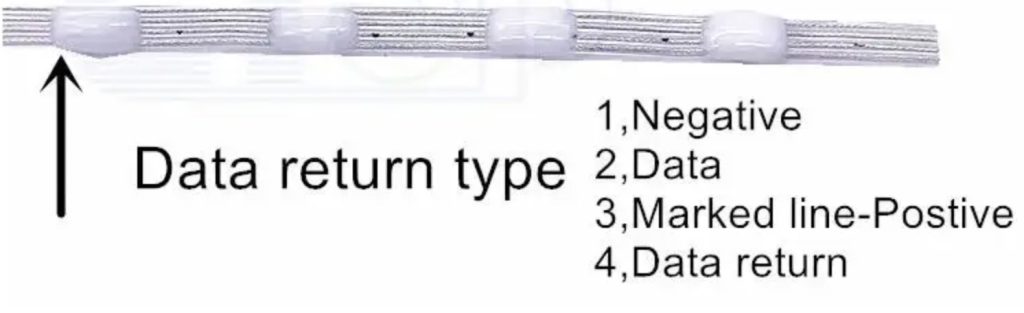

  • Wire: 10X0.14 Thick wire, 4PIN Black/Clear wire (V-, DATA, Dotted line V+, DATA return)

LED Space: 2inch,4inch

  • (2inch) 5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED
  • (4inch) 10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -20~50°.

Waterproof level:IP65 Waterproof

Warranty: 2 Year.

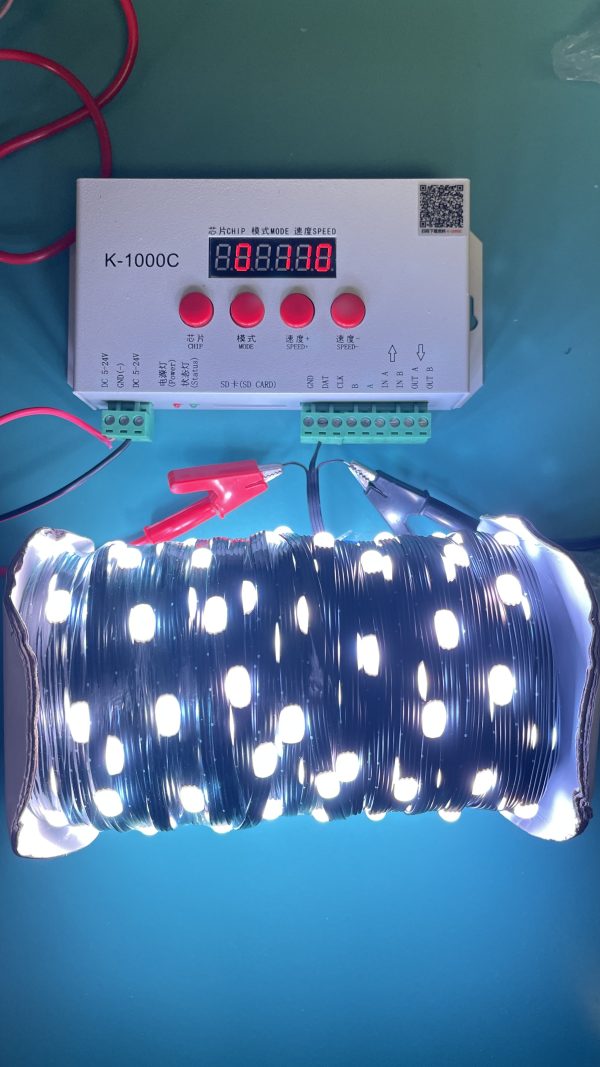

Recommended Controllers:

APP bluetooth & WIFI/SD card/Artent SPI etc

Power Injection suggestion:

Warm Tips: Because of voltage drops, if LED quantity above 200-300LEDs, you can not light it up without power injection, so need to cut them to use.

Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

This is the Roll with LED on it, not include male/female connectors and controller, power supply…. You should buy these components separately.
