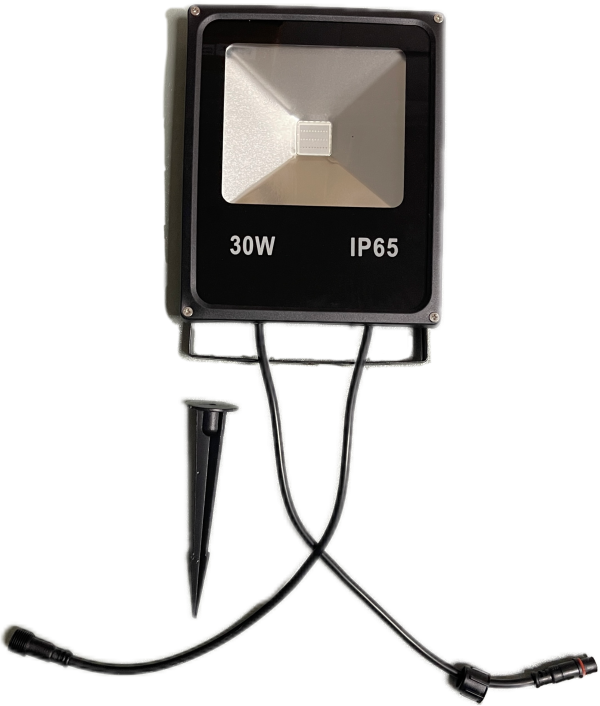

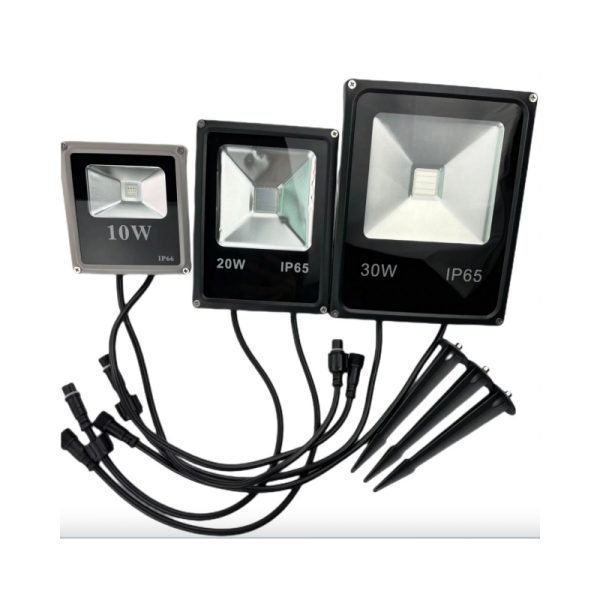

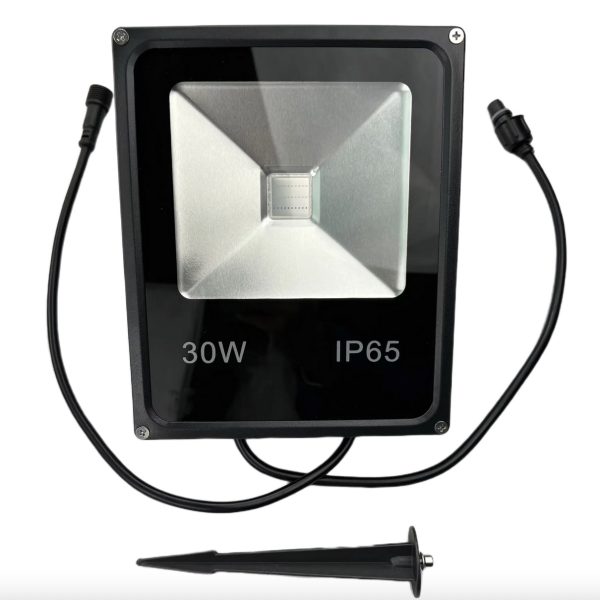

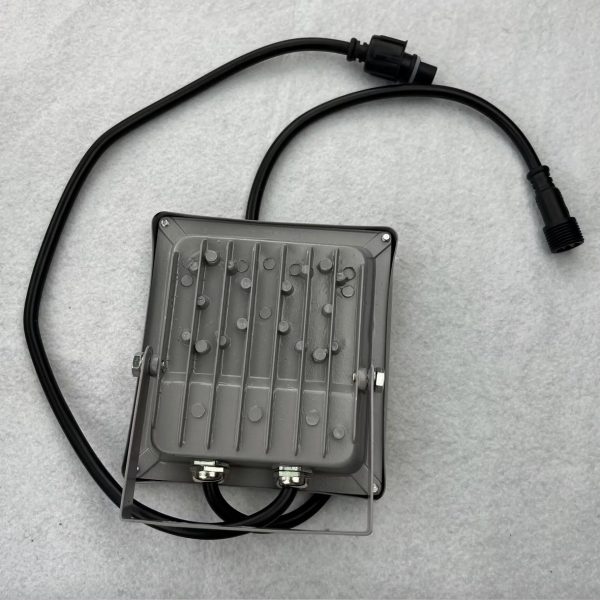

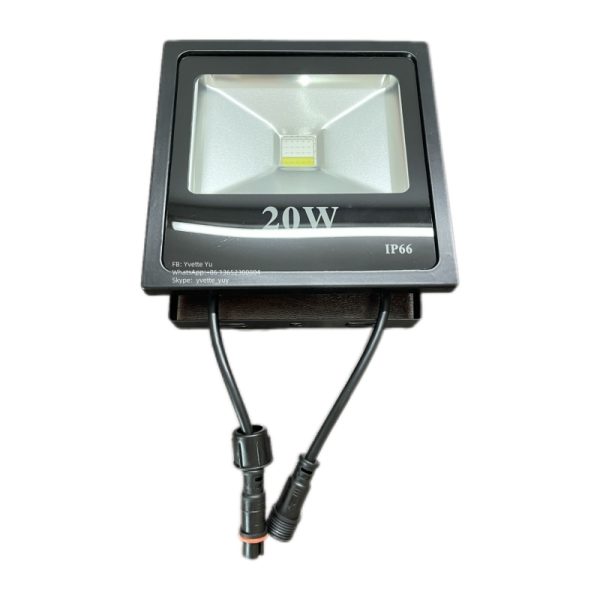

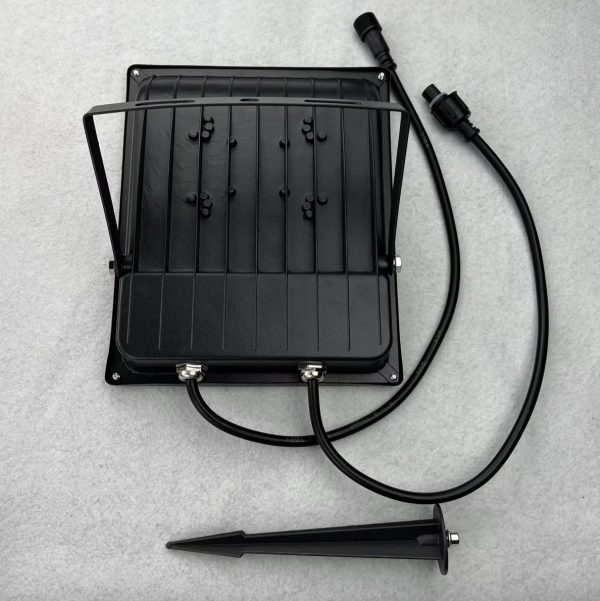

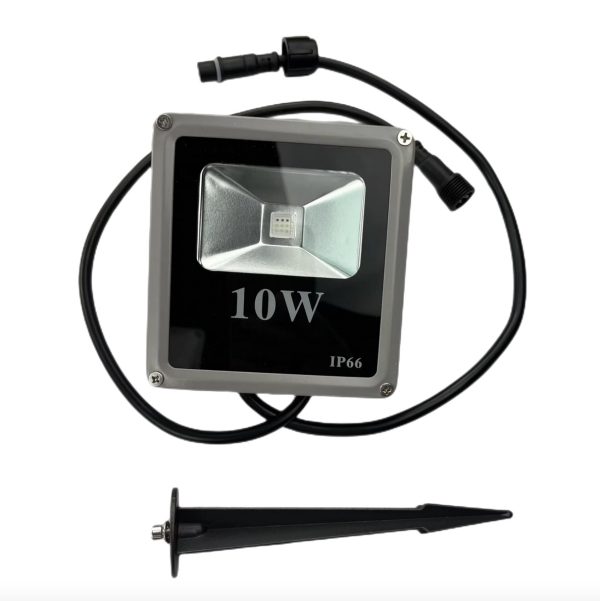

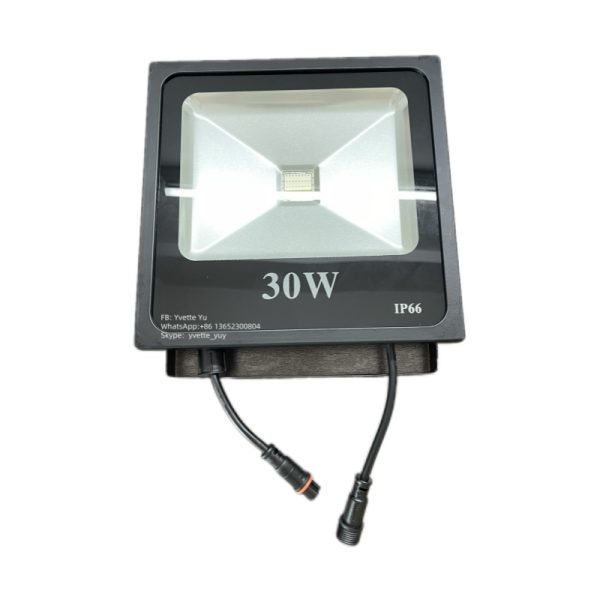

Pixel FLood light WS2811 10W/20W/30W RGB/RGBW DC12V Addressable Full color

DC12V, Digital WS2811 RGB full color changing,IP66 outdoor, attached 3core 0.75sq m 15cm round wire waterproof Xconnect pigtail; with stake.

  • 10w floods RGB, Price: US$15.49/set with stake
    20w floods RGB, Price: US$23/set with stake
    30w floods RGB, Price: US$25/set with stake



DC12V, Digital UCS2904 RGBW full color changing,IP66 outdoor, attached 3core 0.75sq m 15cm round wire waterproof Xconnect pigtail; with stake.

  • 10w floods RGBw, Price:$17/set with stake
    20w floods RGBw, Price:$25/set with stake
    30w floods RGBw, Price:$28/set with stake



If More qty more discount

If you want to place order or get more price list,
Please Kindly Contact directly to get fast response:

  • Send PM to FB: Yvette Yu Led
  • WhatsApp:+86 13652300804
  • Email : yvette@yvetteled.com
  • Email: yvetteyuledsh@163.com



Parameter Performance:

  • Case Material: Die-cast aluminum
  • Input Voltage: DC12V/24V
  • Beam Angle:   120º
  • Power source:10W/20W/30W RGB/RGBW LED
  • Control method: WS2811 IC

Case Size:

  • 10W:  L119*W126*H40mm
  • 20W: L178cm*W137cm*H38cm
  • 30W: L230mm*W180mm*H50mm

Standard pinout diagram for our pixel lights:

  • Brown:-            12v +
    Yellow/green: Data
    Blue:                 GND V-

Input end:     male connector(screw end with bare pin)

Output end:  female connector(with hole)



Real Video:
