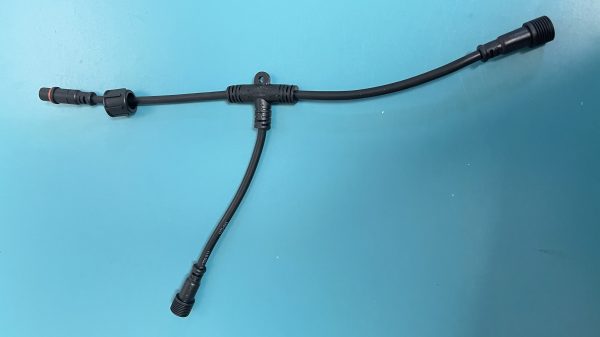

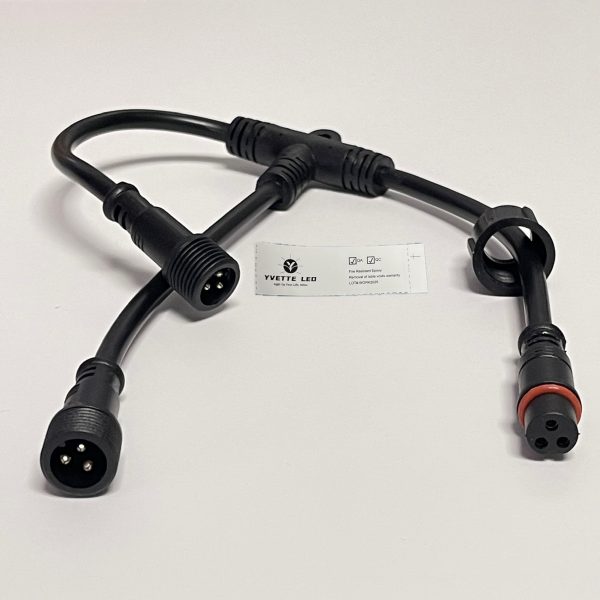

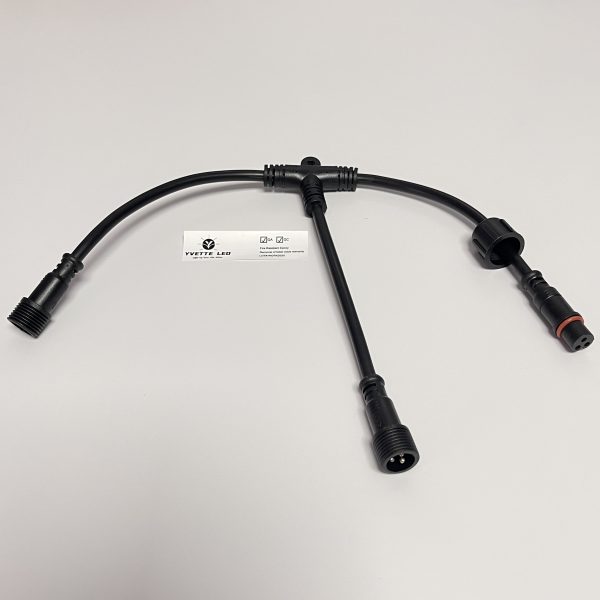

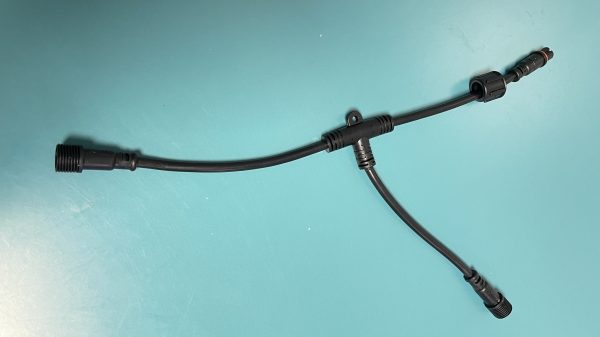

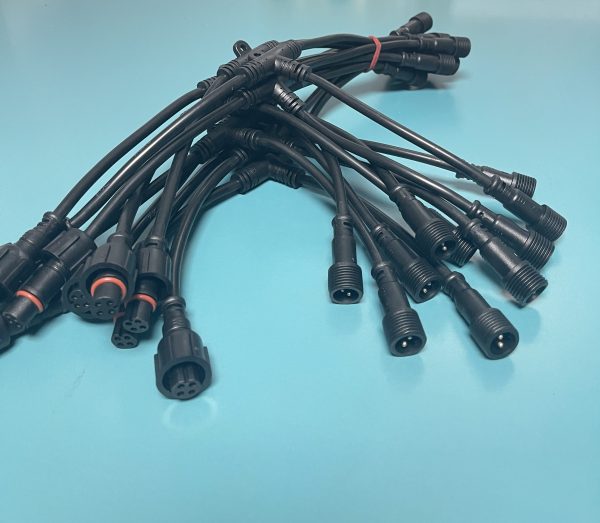

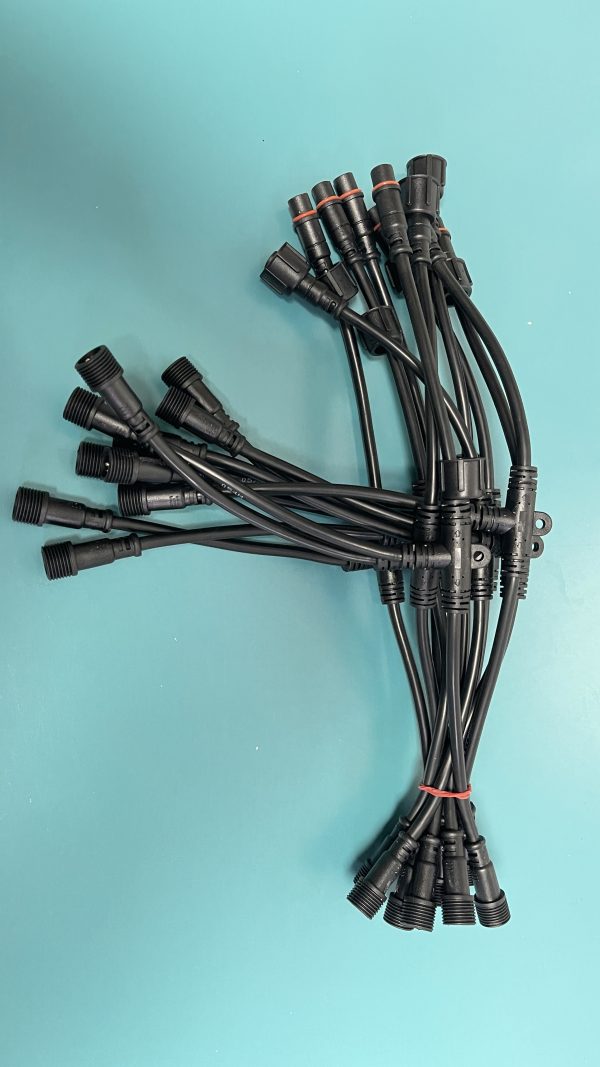

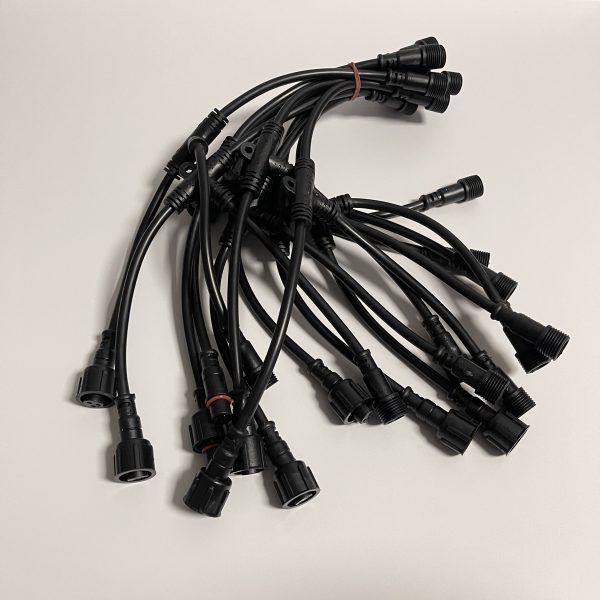

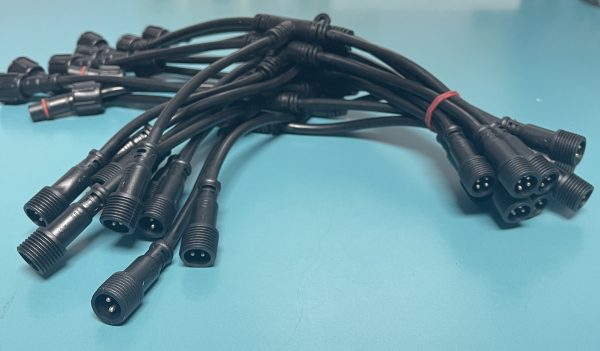

T-connector Xconnect (3-2-3)/(3-3-3)/(3-4-3)/(4-2-4) Power Injection Black Round 18AWG Cable

• 3-3-3 T’S:

3-3-3 T’s have a 3 pin standard xConnect connection on each end. Standard 3 core extensions can be used with these T’s.

1 Female and 2 male ends. All 3 pins are connected at the T to provide power in both directions.

3 core male-3 core male-3 core female

3 core male: VCC+ / Data in / GND

3 core male: VCC+ /Data in / GND

3 core female: VCC+ / Data output / GND

• 3-3-3 Special T’S:

3 core male-3 core male-3 core female

3 core male: VCC+ / Data in / GND

3 core male: VCC+ /VCC+ / GND (Middle 3 core has not Data,two VCC+ and one GND)

3 core female: VCC+ / Data output / GND

• 3-2-3 T’S:

3-2-3 T’s have a 3 Pin standard xConnect connection on the pixel input and output end. The injection side of the T has a 2 core xconnect male connector for the positive and negative pin.

3 core male-2 core male-3 core female

3 core male: VCC+ / Data in / GND

2 core male: VCC+ / GND

3 core female: VCC+ / Data output / GND

• 4-2-4 T’S:

4 core male-2 core male-4 core female:

4 core male: VCC+ / Data in / CLK in/GND

2 core male: VCC+ / GND

4 core female: VCC+ / Data output / CLK out GND
