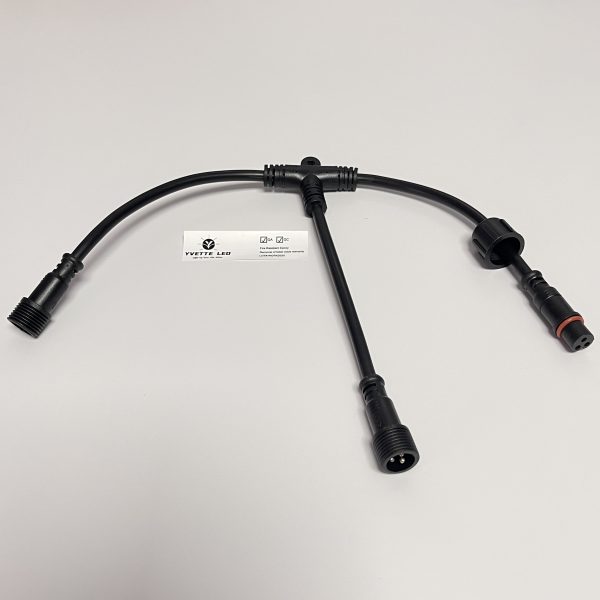

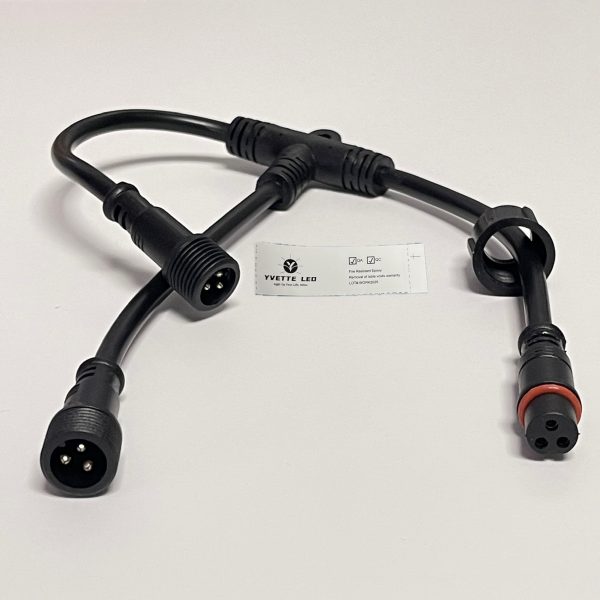

(US Stock)T-connector Xconnect (3male-3male-3female)
Xconnect power infection T, Male 3core/ Male 3core (center) / Female 3core,20cm each side
- Price: US$1.75/pc
- Please kindly write me your order list and tell me your address of which state, city and zip code, I will offer total cost for your reference;
- And If you want to order then i will make an invoice for you.
Send Messenger to FB: Yvette Yu Led to get fast response
WhatsApp:+86 13652300804
Email : yvette@yvetteled.com
Email: yvetteyuledsh@163.com

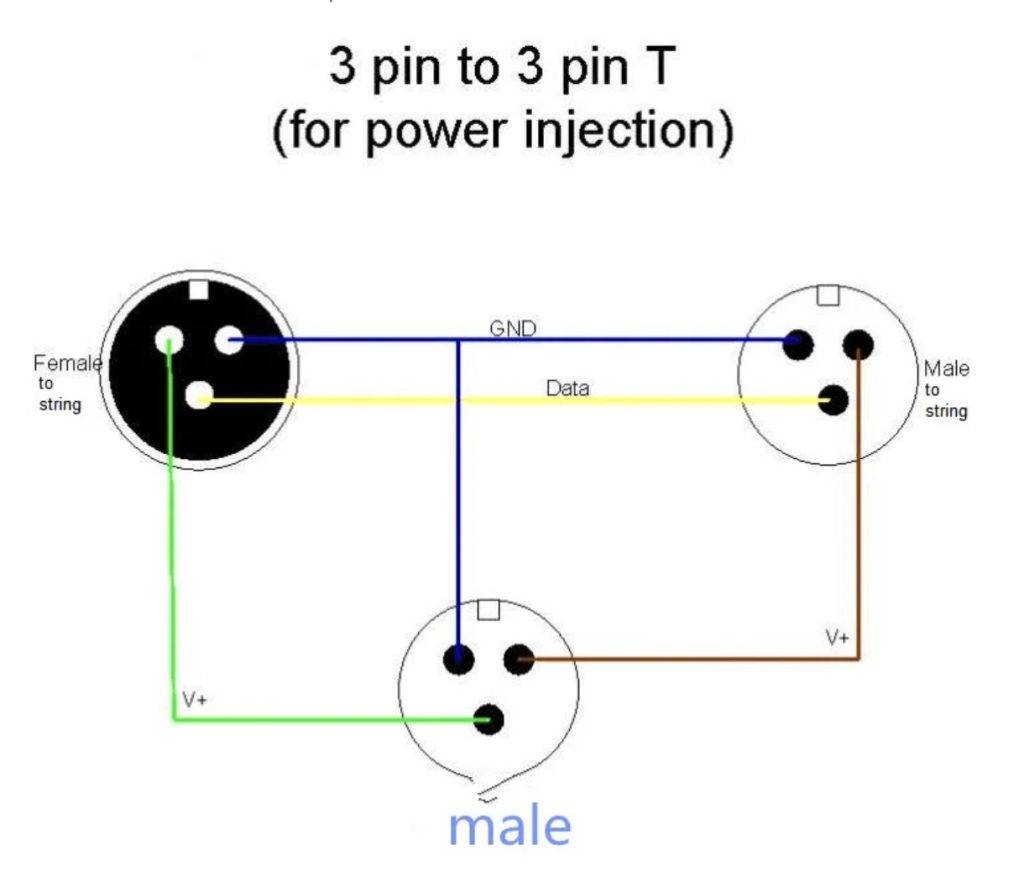

- 3-3-3 T’S:

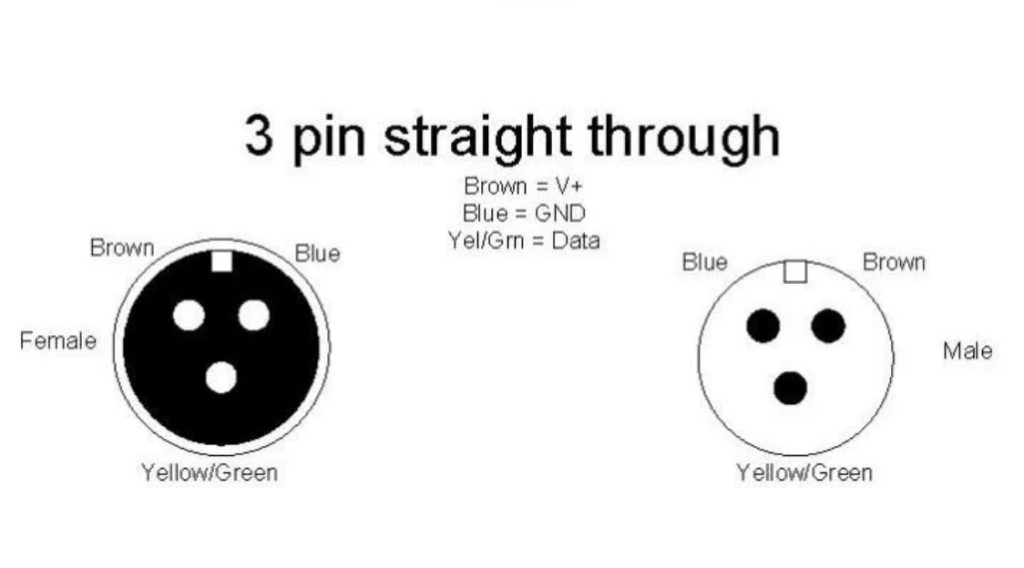

3-3-3 T’s have a 3 pin standard xConnect connection on each end. Standard 3 core extensions can be used with these T’s.
1 Female and 2 male ends. All 3 pins are connected at the T to provide power in both directions.
3 core male-3 core male-3 core female
3 core male: VCC+ / Data in / GND
3 core male: VCC+ /Data in / GND
3 core female: VCC+ / Data output / GND
- 3-3-3 Special T’S:
3 core male-3 core male-3 core female
3 core male: VCC+ / Data in / GND
3 core male: VCC+ /VCC+ / GND (Middle 3 core has not Data,two VCC+ and one GND)
3 core female: VCC+ / Data output / GND

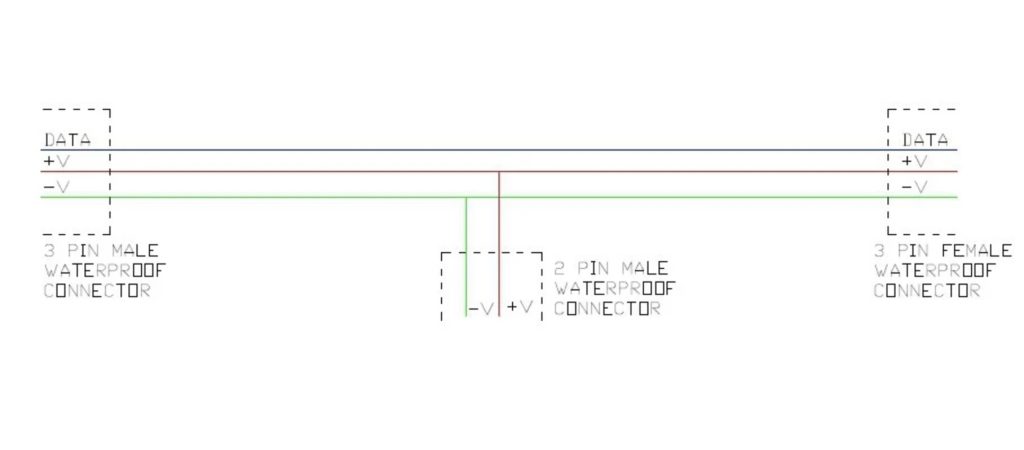

- 3-2-3 T’S:
3-2-3 T’s have a 3 Pin standard xConnect connection on the pixel input and output end. The injection side of the T has a 2 core xconnect male connector for the positive and negative pin.
3 core male-2 core male-3 core female
3 core male: VCC+ / Data in / GND
2 core male: VCC+ / GND
3 core female: VCC+ / Data output / GND

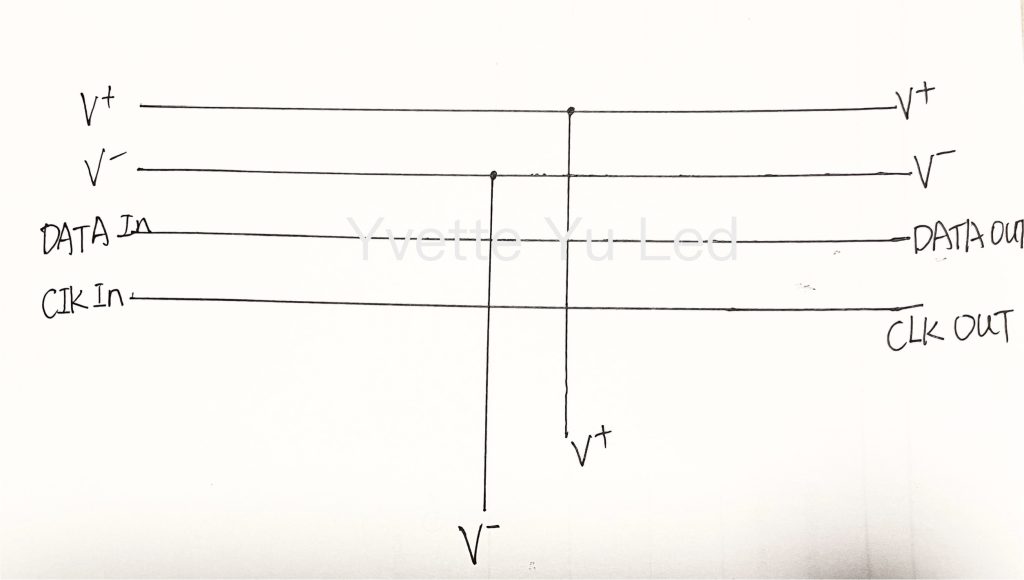

- 4-2-4 T’S:
4 core male-2 core male-4 core female:
4 core male: VCC+ / Data in / CLK in/GND
2 core male: VCC+ / GND
4 core female: VCC+ / Data output / CLK out GND
