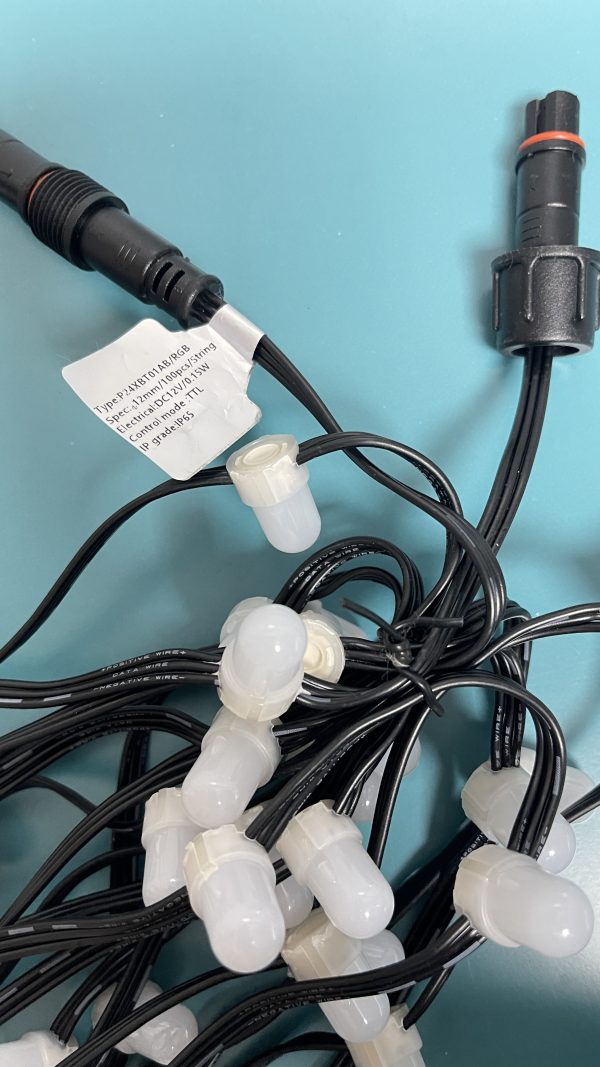

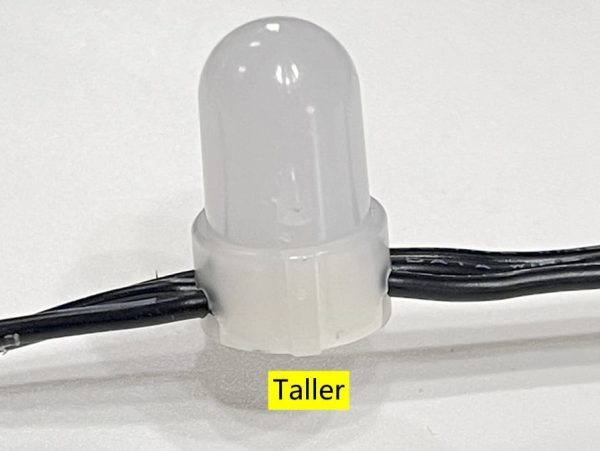

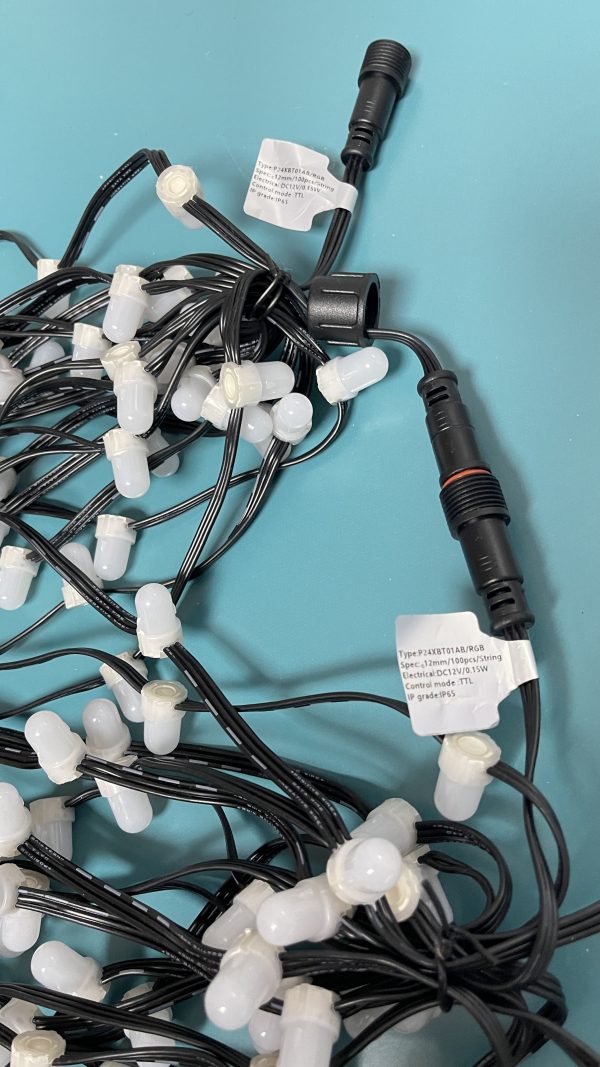

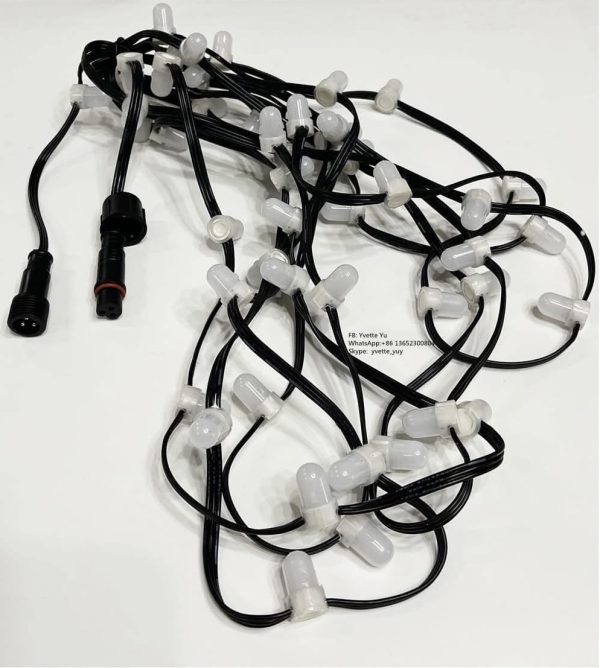

(US Stock)100cts 12V Taller P24 Xconnect pigtails
Tall P24 Resistor LB1908ic RGB ( Same protocol as WS2811ic) /DC12V /0.15W/pc / 18awg Black wire / (4inch)10cm wire spacing from center of pixel to next center of pixel /with 15cm flat wire 3 core 13.5mm waterproof Xconnect; No power injection wires. 50cts or 100cts /string;
- 100cts 12V Taller P24 Xc pigtails US$21.99/string
- Please kindly write me your order list and tell me your address of which state, city and zip code, I will offer total cost for your reference;
- And If you want to order then i will make an invoice for you.
Send Messenger to FB: Yvette Yu Led to get fast response
WhatsApp:+86 13652300804
Email : yvette@yvetteled.com
Email: yvetteyuledsh@163.com
Real Video Introduce:
1.Light weight ( 0.25kg vs 0.5kg on standard bullet nodes, Helps you to save shipping cost).
2. Distance comparison:
P24 is single-ended powered, one port can carry 200 lights, and the light string can be arranged at a distance of 20m, which is much greater than the 6m of standard bullet nodes ;
- Brightness comparison:
P24 has a luminous efficiency of 0.15W 26.7lm/W, standard bullet nodes has a luminous efficiency of 0.5W 7.6lm/W, and P24 has a higher luminous efficiency;
- Wire welding process:
P24 uses an intermediate wire welding process to eliminate the voltage loss caused by PCB routing;
- Application scenarios:

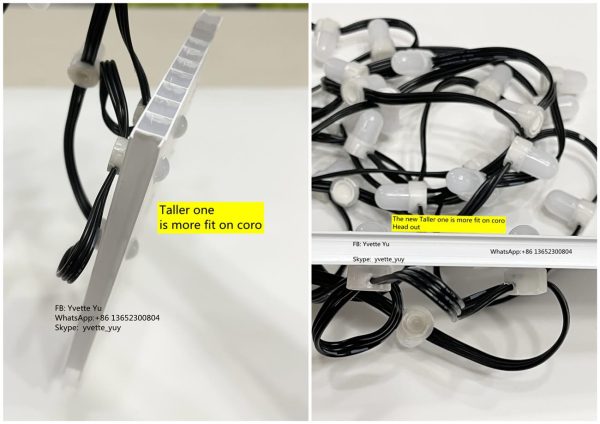

P24 can be used for PE mounting strips, 10mm hollow coror, and 10mm solid coro;
- Certification comparison:
P24 and standard bullet nodes both have ETL certification to meet the needs of the North American market;

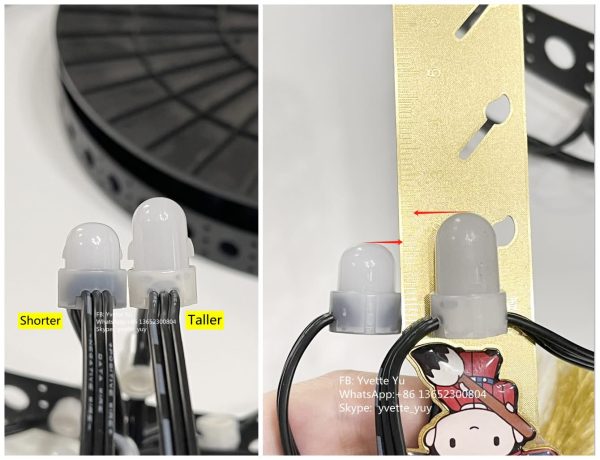

- Appearance comparison:

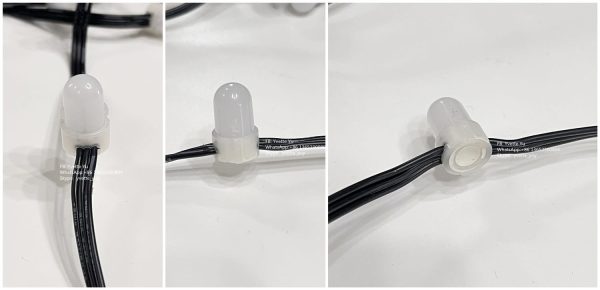

Compared with standard bullet nodes, P24 has a more modern and simple appearance and cleaner wiring.

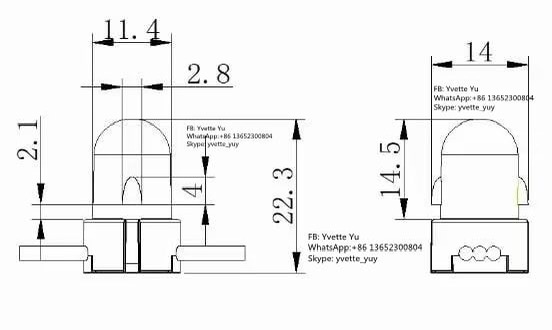

Size drawing
Aging Test for several hours to ensure quality:
Waterproof Test to ensure quality:
