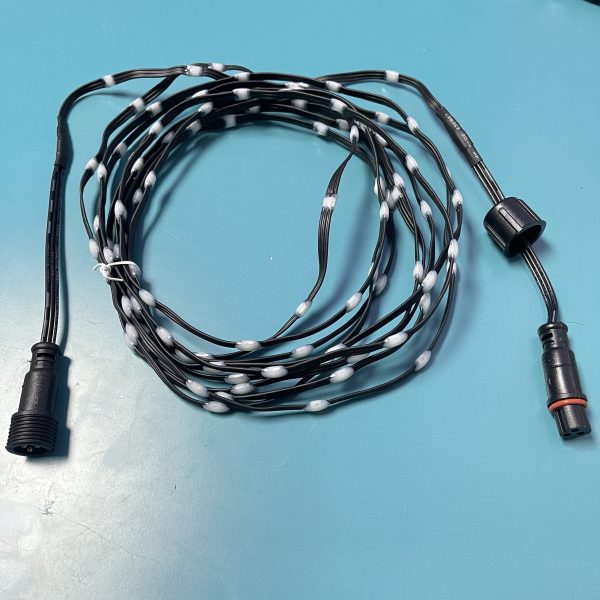

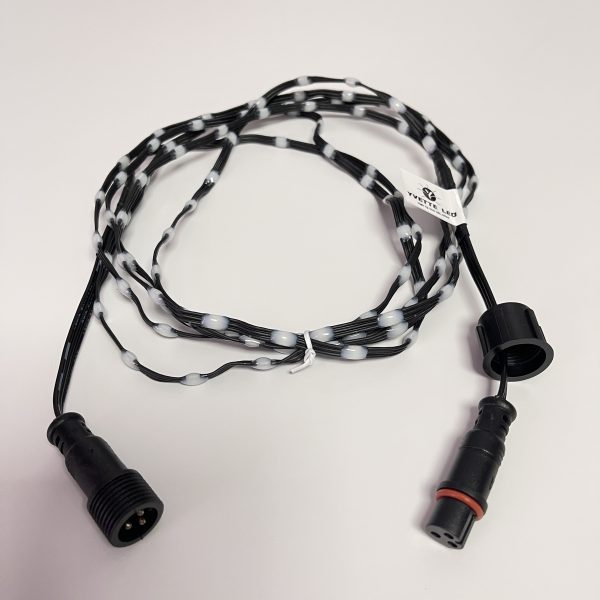

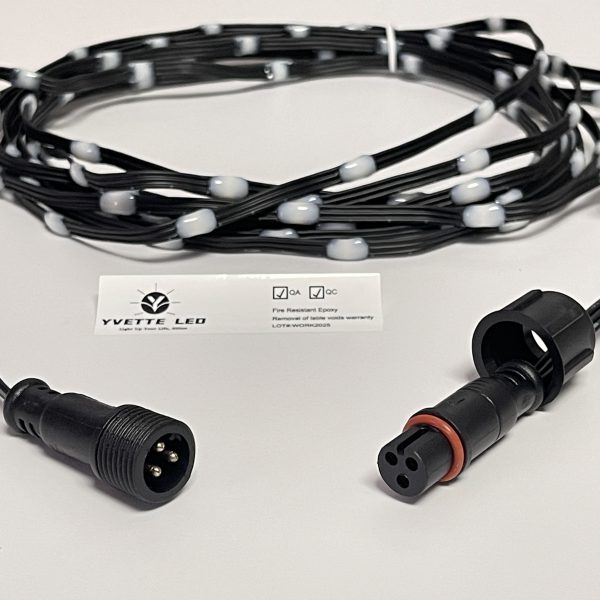

(US Stock)Seed pixels 100cts/String 2inch Black Xconnect

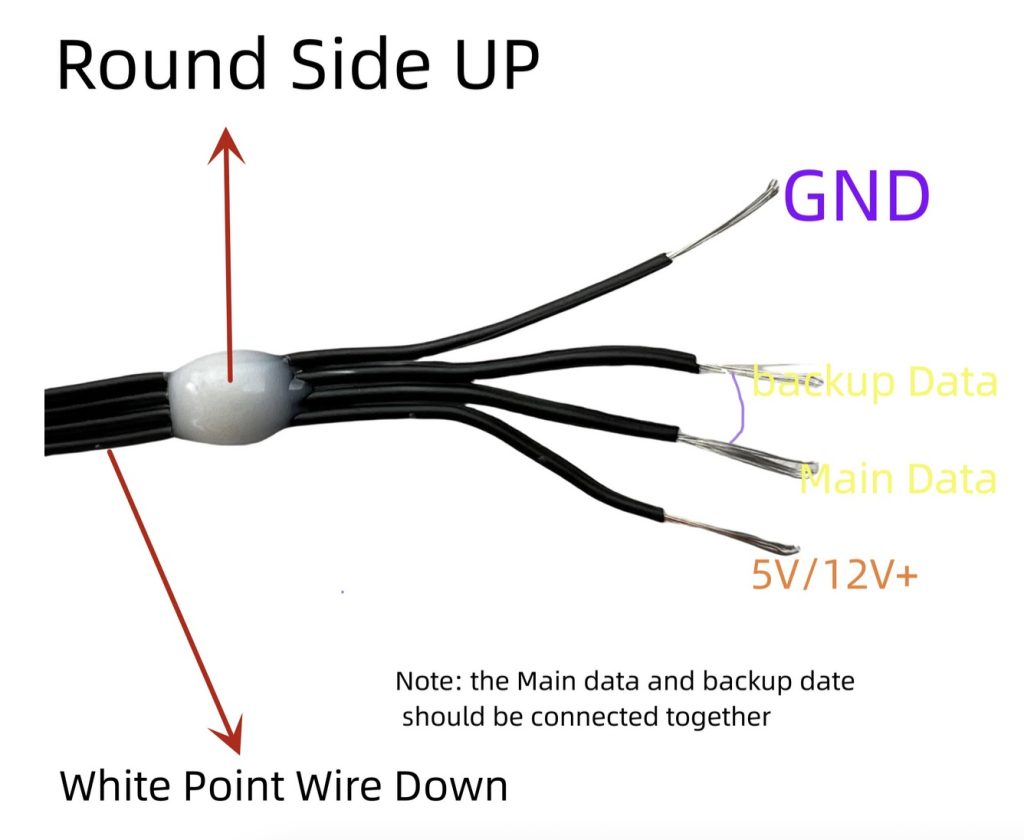

DC12V Seed pixels, MW1856MA ic(same protocol as WS2811ic), SMD3248 RGB, spacing center to center, 10×0.16mm Thick wire, Black wire, Pixel LED node addressable, attached with 10cm flat wire Xconnector male input and female output; 100cts/string. (Dotted is V+, Middle data)
- 2inch space, Price:7.50usd/string
- Please kindly write me your order list and tell me your address of which state, city and zip code, I will offer total cost for your reference;
- And If you want to order then i will make an invoice for you.
Send Messenger to FB: Yvette Yu Led to get fast response
WhatsApp:+86 13652300804
Email : yvette@yvetteled.com
Email: yvetteyuledsh@163.com
Working Input Voltage: DC12V or DC5V
Output Power: 0.01W/pc led.
Emitted Color: MW1856MA ic(Same protocol as WS2811) RGB ,addressable RGB full color
LED Space: 1inch/2inch/4inch/6inch/8inch space
LED quantity: one LED as one pixel(addressable);total 100cts/string
Power injection: suggest to add voltage at every 100 LED
Wire color/Gauge: 1inch: Black/Clear 3PIN wire(7X0.14 0.2mm Wire)
2inch/4inch/6inch/8inch: Black/Clear 3PIN 20awg wire(10X0.16 0.2mm Wire)
- Wire length:
- 1inch(2.5cm) wire spacing; so 100 pixels/roll is 2.5m long

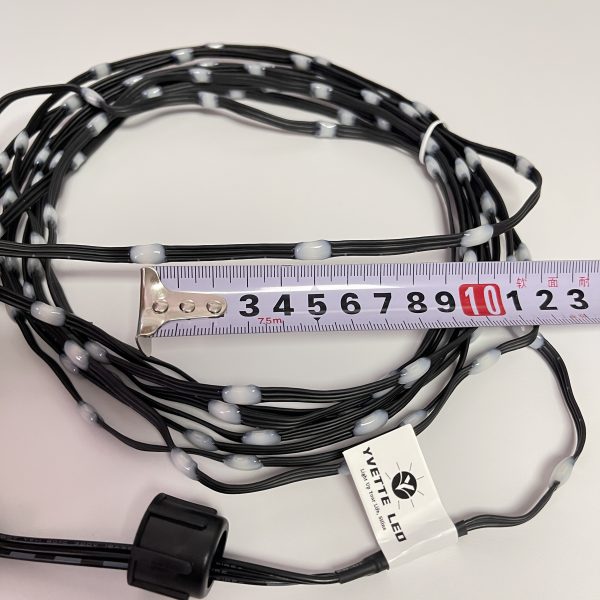

- 2inch(5cm) wire spacing; so 100 pixels/roll is 5.0m long
- 4inch(10cm) wire spacing; so 100 pixels/roll is 10m long
- 6inch(15cm) wire spacing; so 100 pixels/roll is 15m long
- 8inch(20cm) wire spacing; so 100 pixels/roll is 20m long
View Angle: 360 degree.
Long Life: more than 50000 hours.
Working Tempreture: -20~50°.
Waterproof level: IP65 Waterproof
Warranty: 2 Years.
Recommended Controllers:
APP bluetooth & WIFI/SD card/ Artnet SPI, etc..
